Features

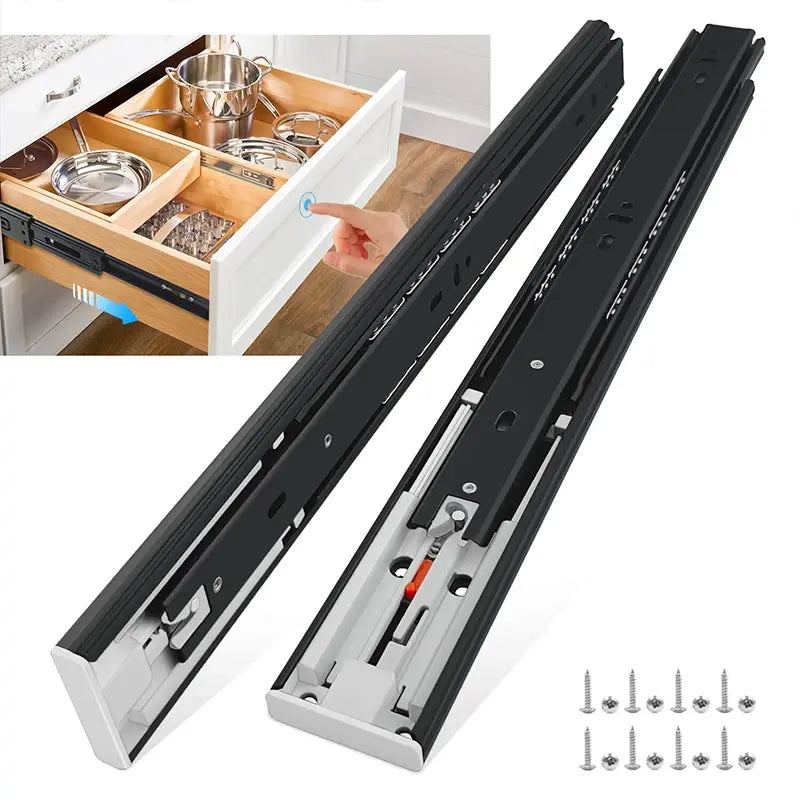

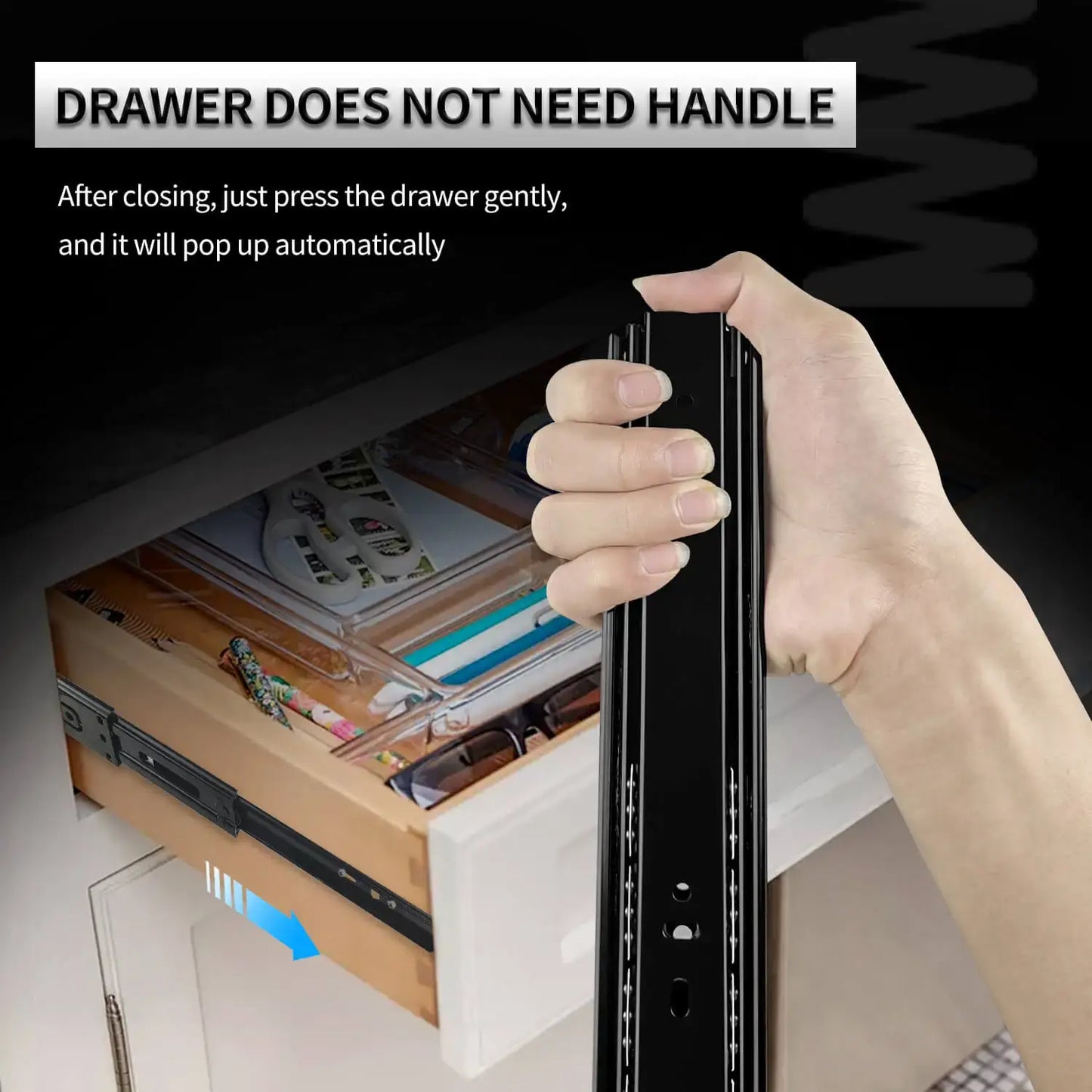

• 【push to open drawer slide】The drawer front is pushed back Springs are engaged and slide the drawer slide out Lastly the drawer is pulled fully open by the user
  Notably, push to open drawer slides are self closing and not soft closing. Meaning, drawer slides will hold themselves shut. But the will not close like a dampened soft close drawer.

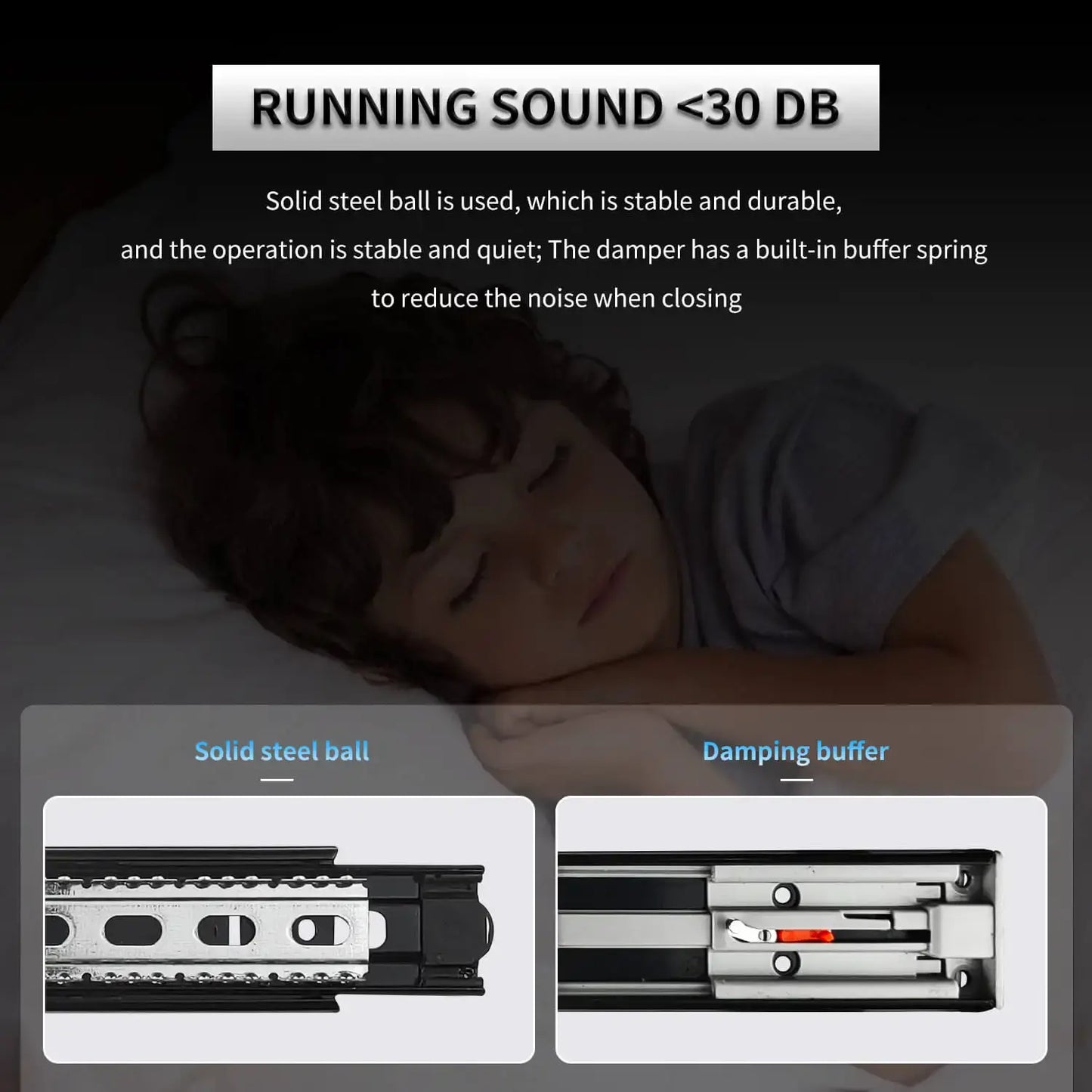

• 【Full Extension Slide】Drawer opens enough for you to reach in and fully extend it with no need for pulls or knobs - perfect for a clean, modern look, or where space or clearance is a concern, such as for boats, motor homes and corner cabinets, where a pull could damage adjoining cabinets. Drawer Slides feature smooth ball- bearing action with hold-in detents to prevent accidental opening.

• 【Detachable 】There is a White plastic buckle on the back of the slide rail, and the drawer can be easily taken out by pressing it，Easy to install.

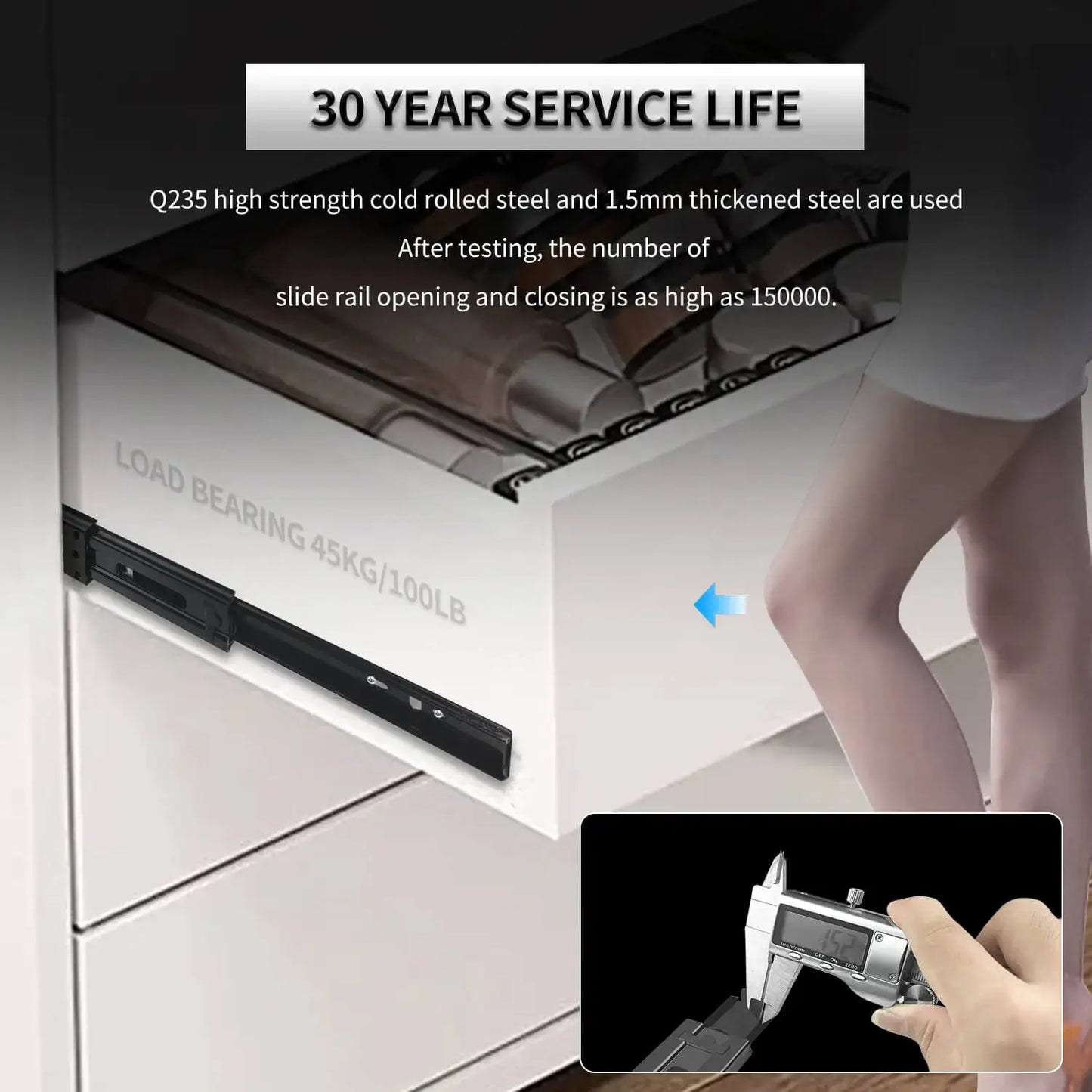

• 【Good load bearing and rust resistance】Made of 1.2mm high-density thickened steel.The bearing capacity can be as high as 100 lbs /45 kg..Has excellent anti-rust function,surface electrophoresis treatment. The electrophoretic layer prevents air from directly contacting the rail steel plate, thereby resisting oxidation and improving corrosion resistance.

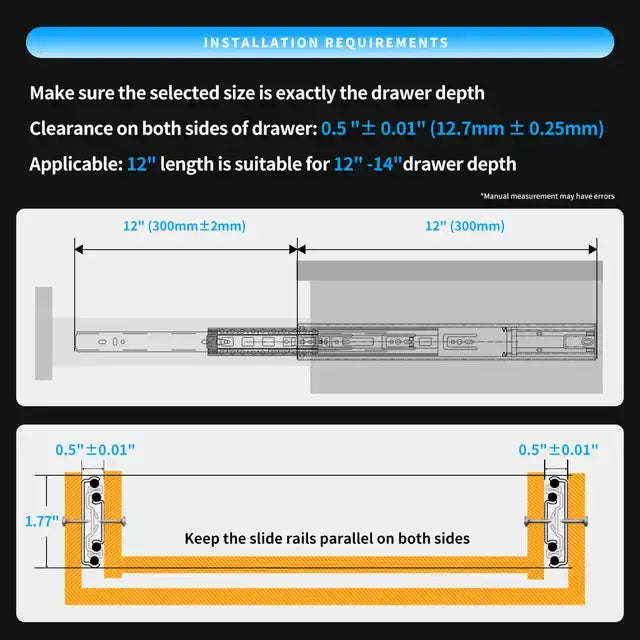

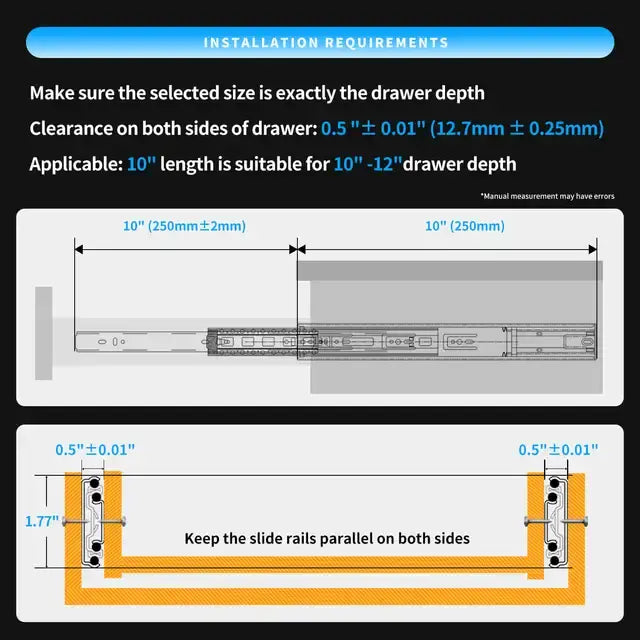

• 【Installation requirements】E.g-Length: 350mm（14inch)— Fully extended length:697mm(27.4 inch).installation clearance: 12.5mm(Each). Comes with mounting screws.It can meet the needs of various household drawers.There are other sizes available soft close drawer runners slides 300 350 400 450 500 550 600 mm Optional.

SPECIFICATIONS









Product Type	1Pair 45kg to open drawer slide
Technical:	Full extension
Material:	1.2mm high-density thickened stee
Finish:	Galvanized
Surface:	Anti-oxidation processing
Load capacity:	45kg/100b
Closed Length:	250-600MM , Extension Length 500-1200MM
Width:	1.2inches(45mm)
Thickness:	0.47inches(12mm)
Clearance of Fixing:	12MM±0.3mm
Special function	Full Extension，Easy to install, Removable

Package Includes



• 1Pair 150lb Locking Drawer Slide

Warranty



1 Year Warranty
